Description

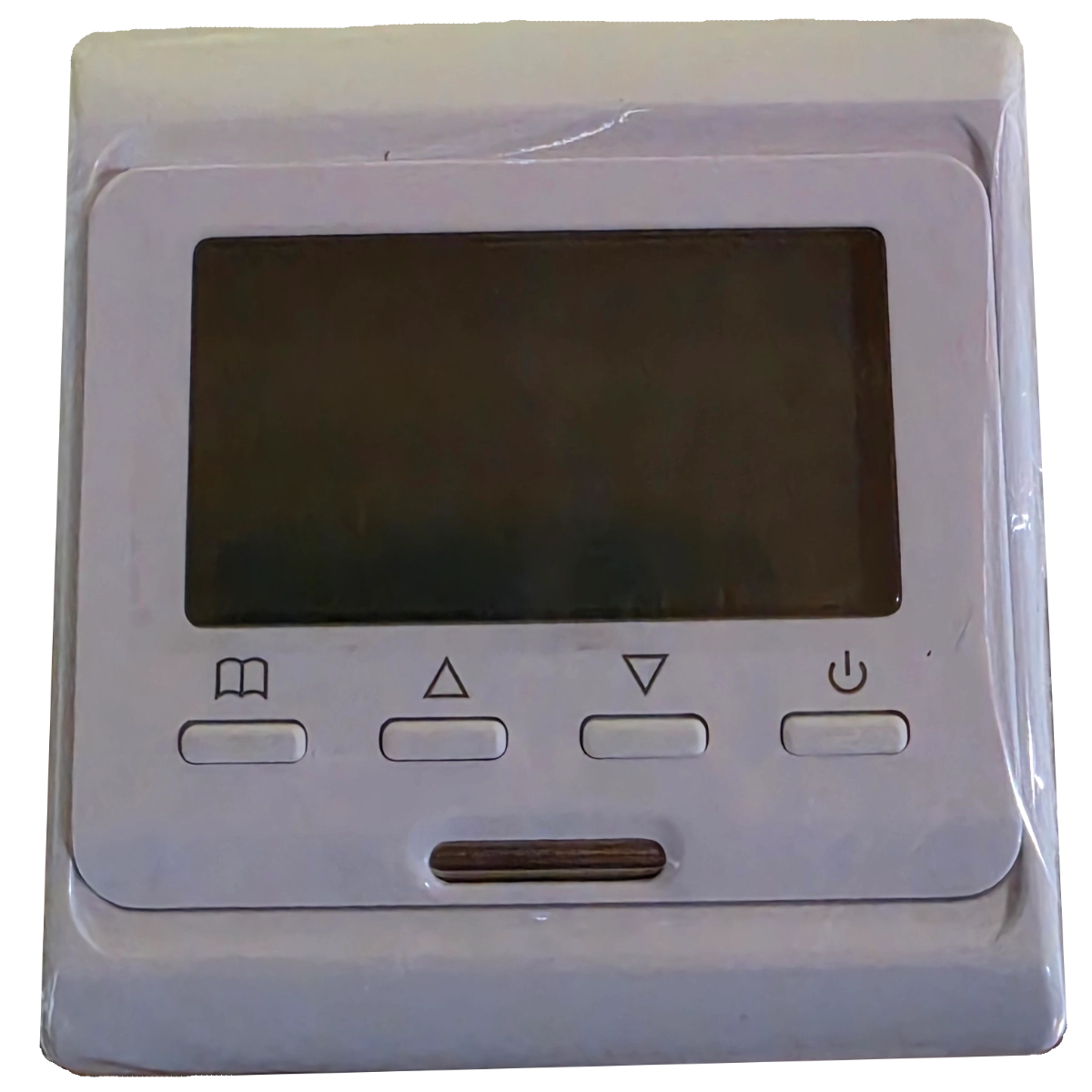

HEACOTEX LCD Process Controller
HEACOTEX LCD is a wall-mounted weekly-programmable temperature controller with a clear LCD display. Switches electric heating circuits manually, on a schedule, or in a temporary-override mode. The dual-mode design (internal sense-control plus optional outer-sense-limit) makes it energy-efficient and well-suited to underfloor and trace-heating installations.
Features
- Friendly interactive interface — clear LCD display
- Manual / programme / temporary mode selectable
- Weekly programming — 6 events per day
- Dual mode: internal sense-control + outer sense-limit (sensor ordered separately)
- IP20 housing in anti-flammable PC
- Optional floor sensor with 3 m lead wire (ordered separately)
Specifications
| Supply voltage | AC 230 V ±10%, 50/60 Hz |
|---|---|
| Power consumption | 2 W max |
| Setting range | 5°C to 95°C (adjustable 35°C to 95°C) |
| Outer-limit temperature | 5°C to 60°C (factory: 35°C) |
| Switching deviation | ±0.5°C |
| Ambient temperature | −5°C to 50°C |
| Protection grade | IP20 |
| Housing material | Anti-flammable PC |
| Floor sensor | 3 m lead wire (ordered separately) |
Application
Underfloor heating, room temperature control and trace-heating circuit control where weekly scheduling and a limit sensor are needed.
Floor sensor and the dual outer-sense function are ordered separately — specify your full configuration when requesting a quote.
