Description

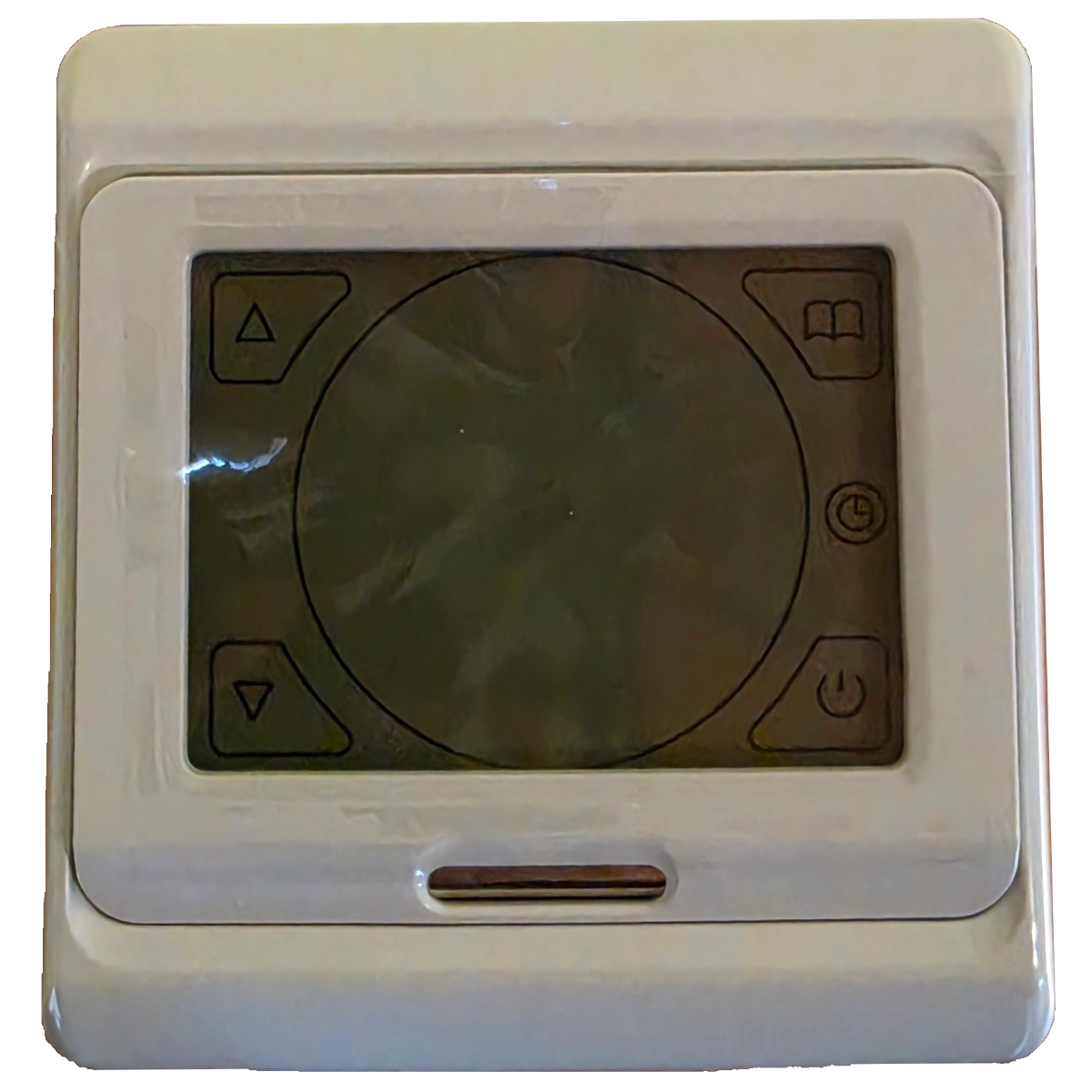

HEACOTEX TT16 Thermostat
HEACOTEX TT16 is a 16 A weekly-programmable thermostat with both built-in (ambient) and floor sensors plus a floor-limit sensor — for accurate, energy-efficient control of underfloor heating and trace-heating circuits. The wide setting range and adjustable switch differential suit it to applications well beyond room comfort heating.
Features
- Weekly-programmable schedule
- Built-in (ambient) sensor + external floor sensor + floor-limit sensor
- Switches up to 16 A on the heating circuit
- Adjustable switch differential (0.5°C to 10°C)
- IP20 housing in anti-flammable PC
Specifications
| Supply voltage | 220 V / 230 V |
|---|---|
| Switching current | 16 A |
| Power consumption | 2 W |
| Setting range | 5°C to 90°C (adjustable to 35°C to 90°C) |
| Limitation setting | 5°C to 60°C (factory: 35°C) |
| Switch differential | 0.5°C to 10°C adjustable (factory: 1°C) |
| Ambient temperature | −5°C to 50°C |
| Protection grade | IP20 |
| Housing material | Anti-flammable PC |
Application
Underfloor heating and electric trace-heating circuits where weekly scheduling and floor-temperature limit protection are required. Common in residential, commercial and light-industrial installations.
Contact Heacotex with your circuit current and sensor preferences (built-in or floor) for the right configuration.
