Description

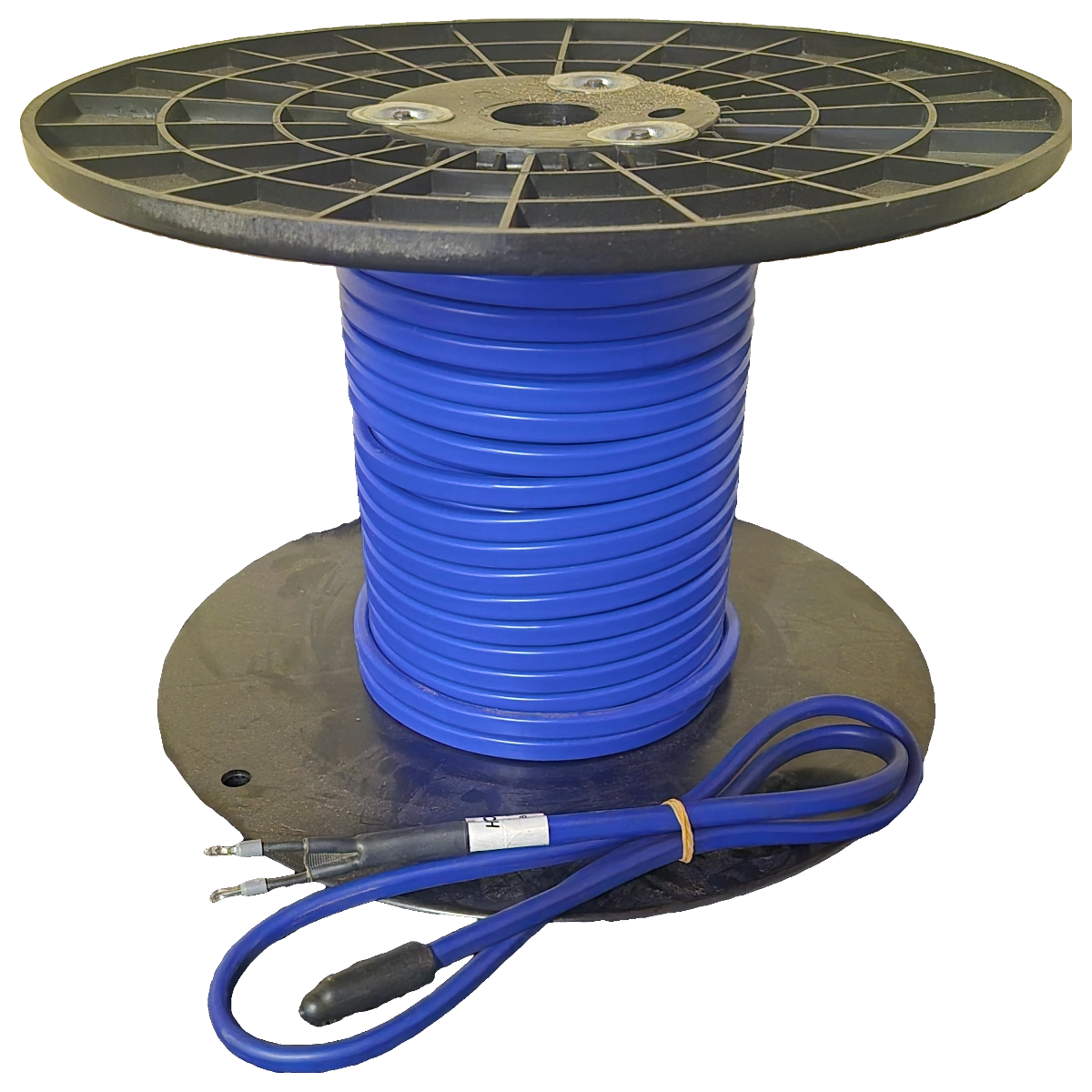

HEACOTEX Silicone Constant Wattage Heating Cable
HEACOTEX Silicone Constant Wattage cable is a zone-parallel heating cable insulated in silicone for moisture-resistant and chemically demanding environments. The silicone insulation gives excellent flexibility, moisture resistance and chemical resistance — suiting it to wet, oily and chemically exposed installations where standard polyolefin jacket materials would degrade.
Features
- Constant power output along the full circuit
- Silicone insulation — flexible, moisture-resistant, chemical-resistant

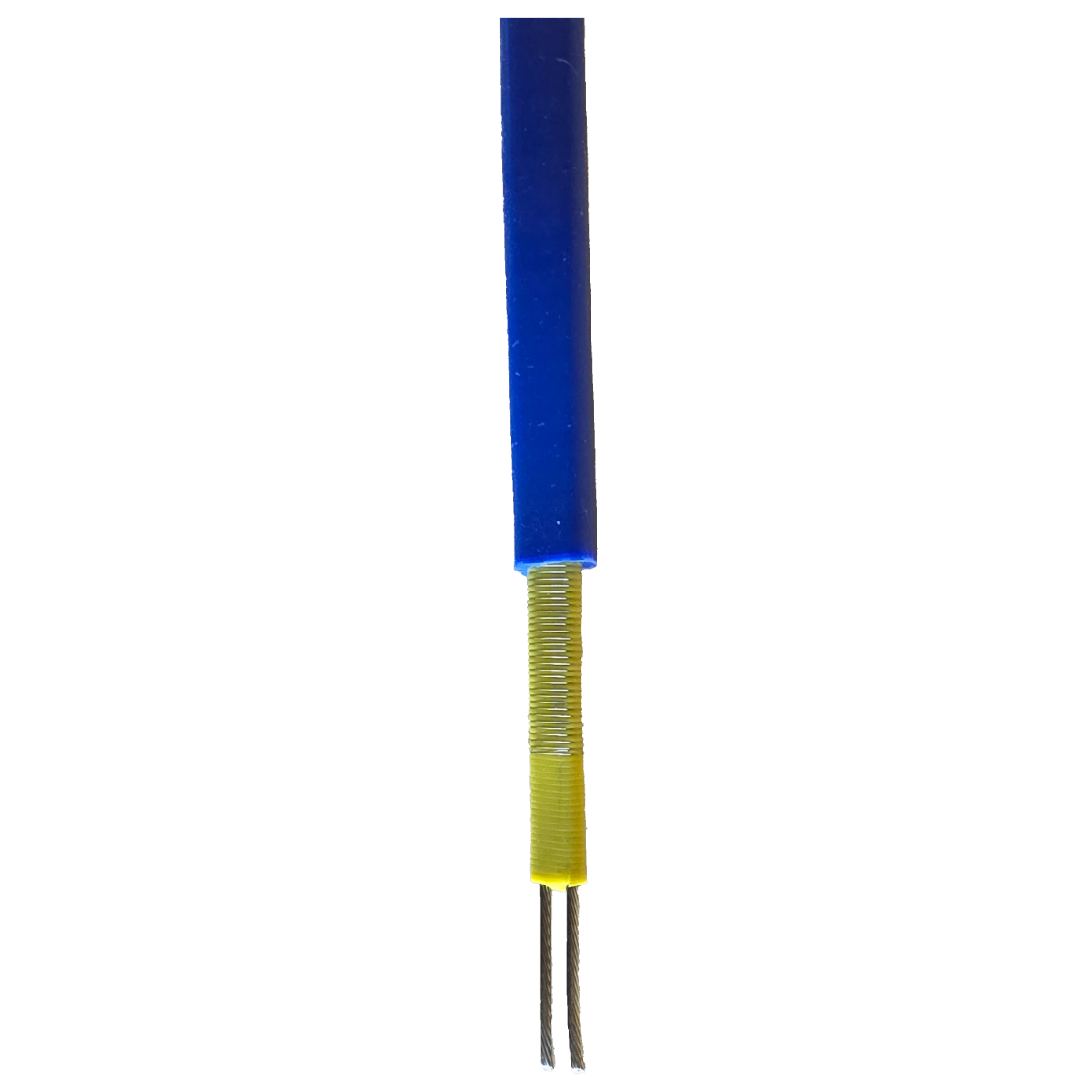

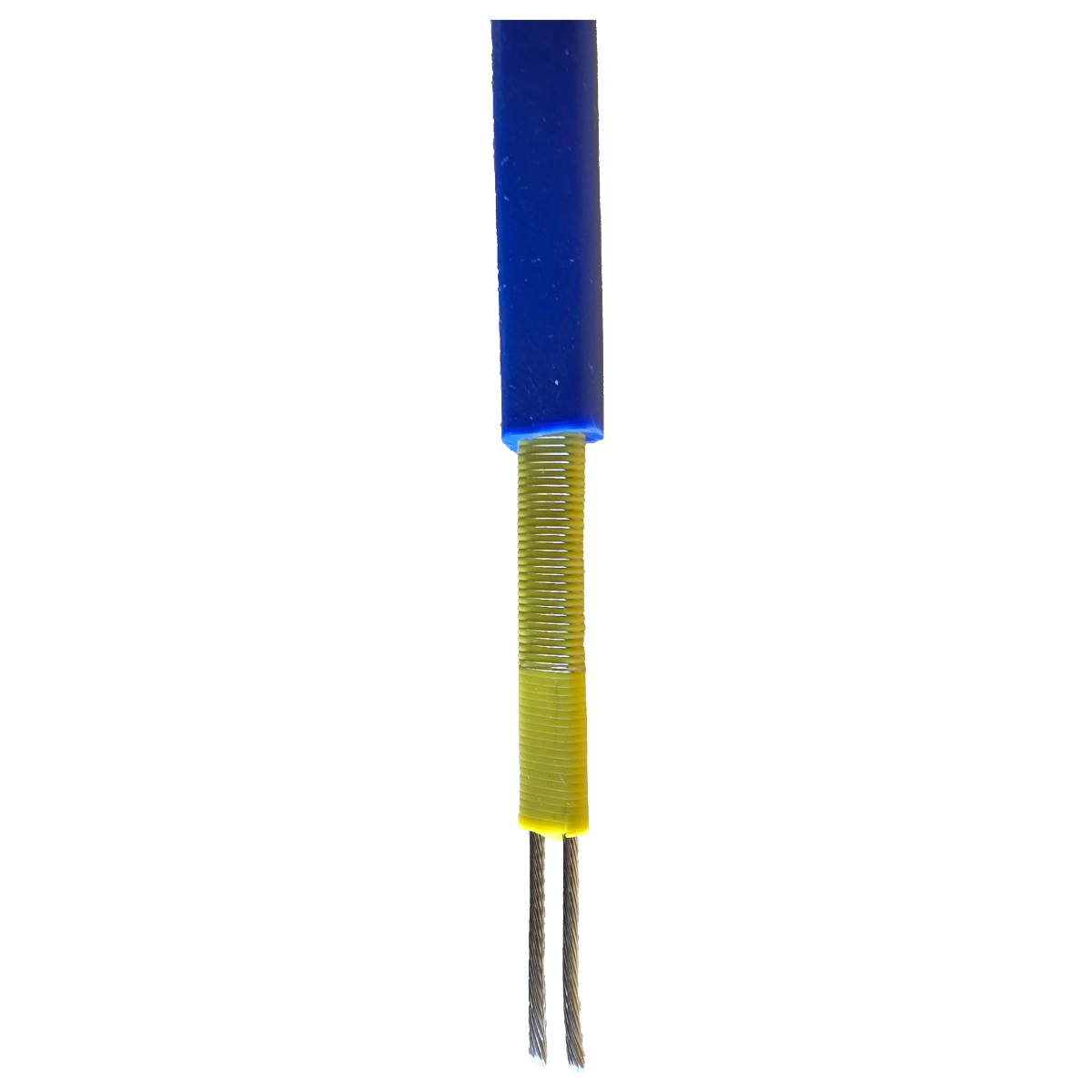

- Zone parallel construction (500 / 1000 mm heating zones)
- Cut-to-length capability with the appropriate silicone termination kit
- Optional external protective braided sheath (tinned copper)
- Optional external silicone or glass-fibre sheath
Specifications
| Input voltage | 220 V / 230 V |
|---|---|
| Maximum design capacity | 40 W/m |
| Maximum circuit length | 100 m |
| Operating temperature range | −60°C to +180°C |
| Dimensions | 9.5 mm wide × 8 mm thick |
| Bus wire size | 1.25 mm |
| Heating zone length | 500 / 1000 mm |
| Packing | 100 m / roll |
Application
Industrial pipe-line and tank temperature maintenance, freeze protection of industrial process pipes, and freeze protection of domestic water pipes or other pipes — particularly where flexibility, moisture or chemical exposure is a concern.
A silicone-compatible termination kit is required — available as an accessory. Contact Heacotex with your application details for circuit length and accessory recommendations.
